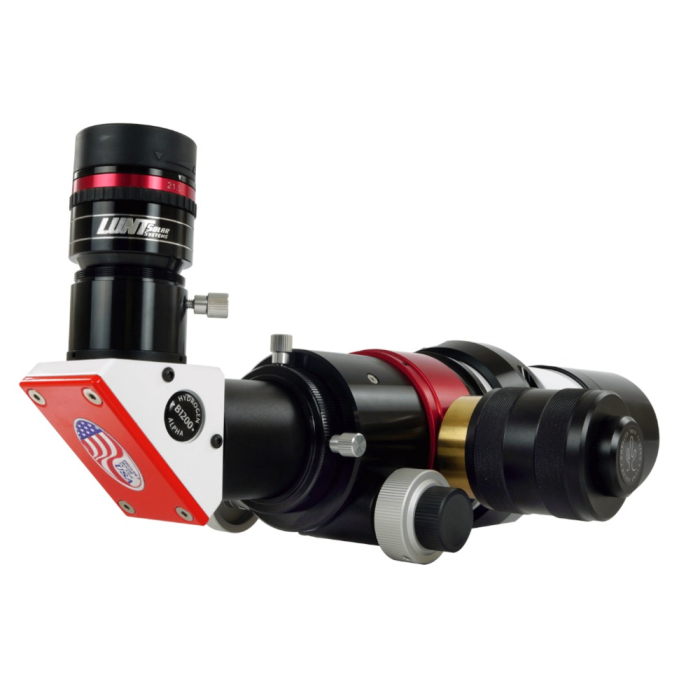

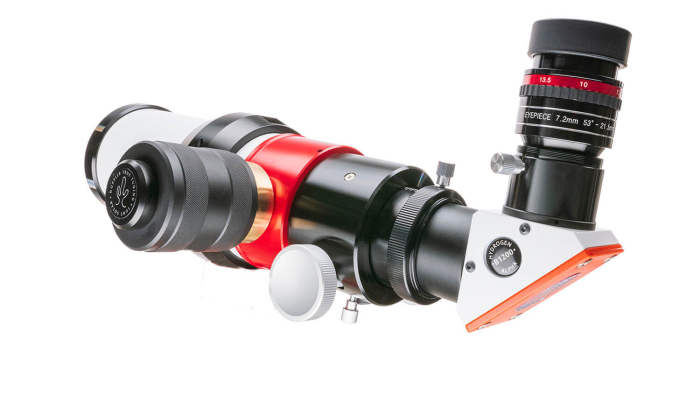

Lunt 60mm Universal H-Alpha Solar Telescope B600
The Lunt Solar Systems 60 mm Universal Telescope (LS60MT/B1600R&P) is the most compact and travel-friendly instrument in the new Universal Telescope lineup. Featuring an ED Doublet Lens, this versatile 60 mm scope is designed for multiple wavelengths, making it a true grab-and-go solution that delivers outstanding performance in every configuration.
In its default solar setup with the included Hydrogen Alpha module, the LS60MT allows users to experience solar observation at a professional level. With its 60 mm aperture, this telescope reveals the Sun with remarkable clarity, unmatched in its class.
Thanks to the Doppler True Tuning Pressure System, observers can explore the Sun’s dynamic details, such as prominences, filaments, and active surface regions, with fine-tuned precision. Adjusting internal pressure enables subtle but powerful shifts in the view, unlocking new layers of solar detail.
When the Sun sets, this dual-purpose instrument transitions seamlessly to nighttime astronomy. Within moments, users can switch from solar viewing to exploring deep-sky objects across the galaxy, enjoying both day and night performance with minimal effort.

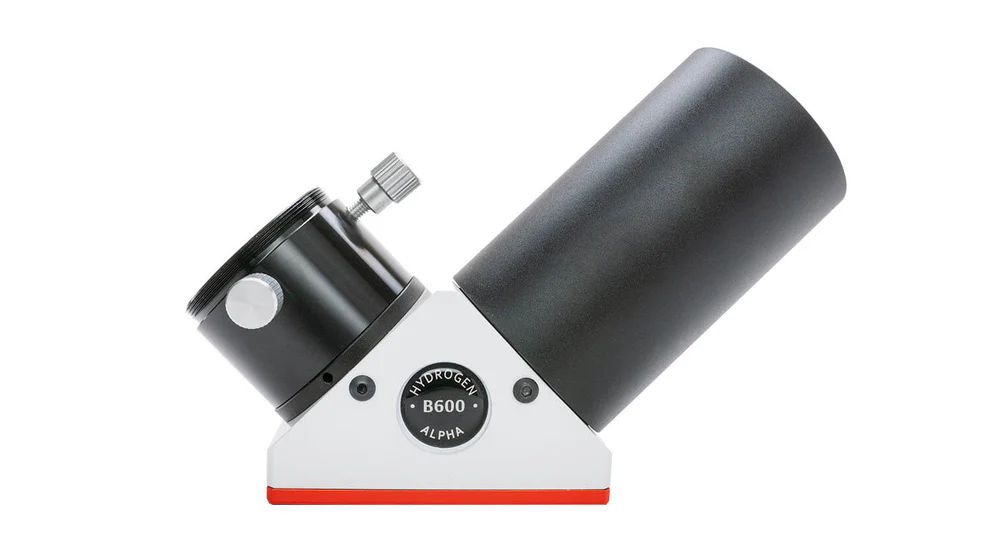

B600 Blocking Filter (Visual Use)
➜ The B600 is the most economical option, designed primarily for visual solar observing.
➜ Provides a clear view of the solar disk with about 1 mm of surrounding area.
➜ Works best with mounts that have automatic tracking.

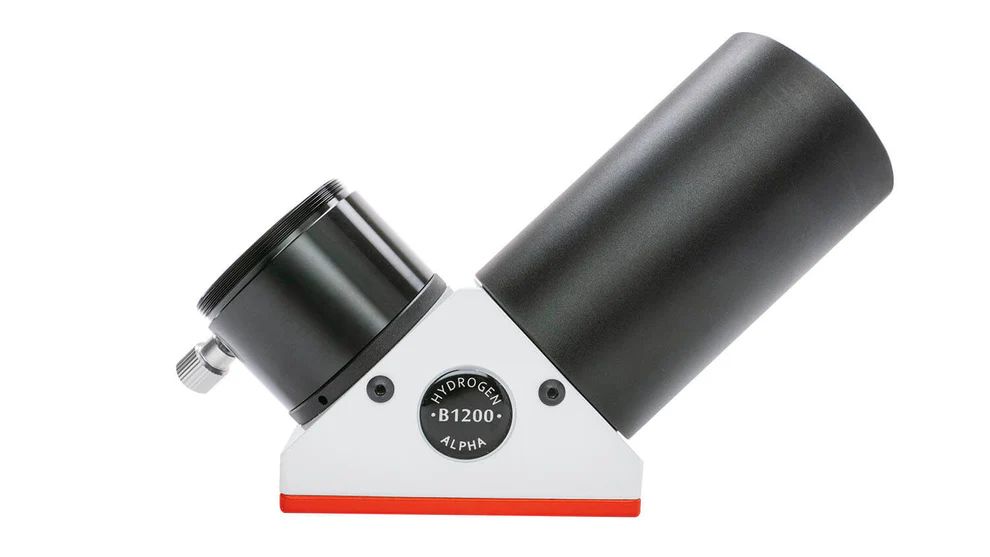

➜ For manual tracking, the B1200 is recommended due to its larger field of view.

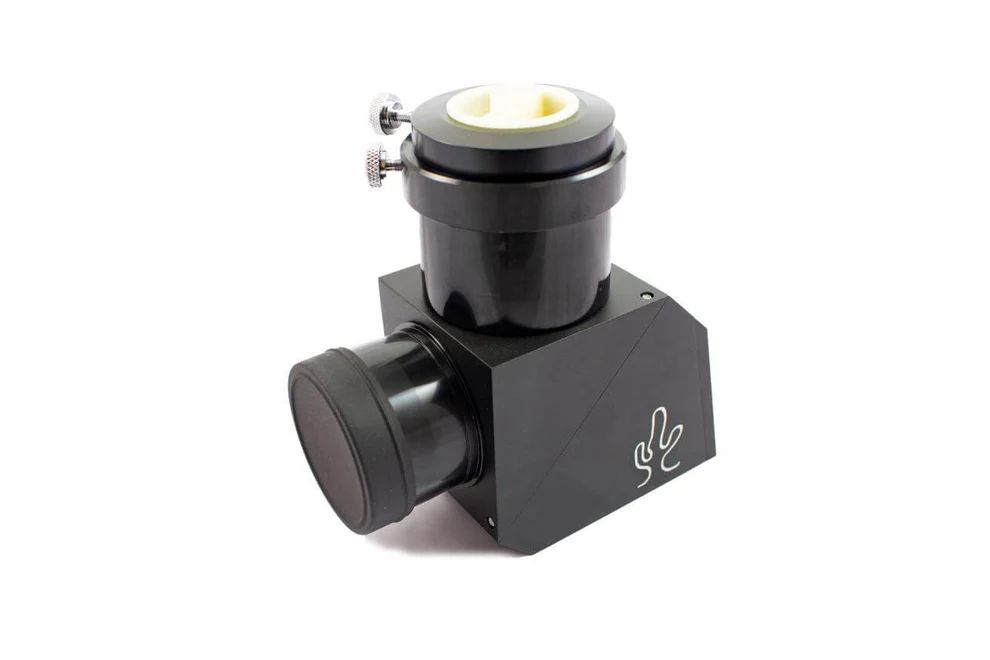

➜ Supplied in a 2" diagonal housing.
Lunt LS60MT H-Alpha Solar Telescope Specifications
➜ Optical Aperture: 60 mm (Hydrogen Alpha)
➜ Etalon: Internal, <0.65 Å bandpass
➜ Tuning: Internal Pressure Tuned (Doppler True Tuning)
➜ Focal Length: 420 mm
➜ Focal Ratio: f/7
➜ Lens: FPL-51 ED Doublet
➜ Blocking Filter : B600
➜ Blocking Filter Options: B600 or B1200
➜ Weight: 3.17kg
📦 In The Box
➜ Lunt LS60MT 60 mm H-Alpha Modular Solar Telescope

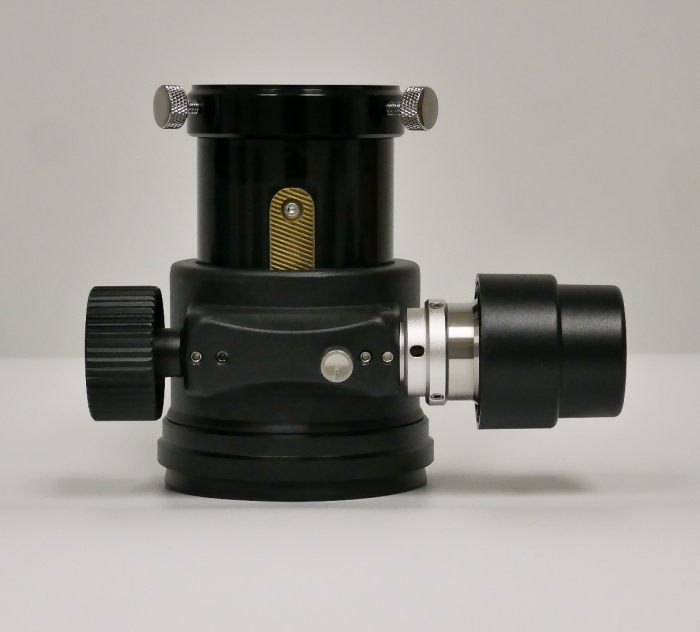

➜ Focuser - 2" Dual Speed Rack & Pinion
➜ Clamshell Mounting Ring
➜ Blocking Filter - Depends on Option
➜ Aluminum Hard Case with Fitted Foam
Telescope Specifications
| Telescope Type |
Universal Day and Night |
| Universal Capabilities |
H-alpha, CaK, White Light, Lunar, Planetary, Deep Space, Terrestrial |
| Aperture |
70mm Native, 60mm H-alpha |
| Objective Type |
Professional Grade ED Doublet |
| Objective Material |
FLP51 |
| Objective Coating |
Ion Assist Broadband AR |
| Focal Ratio |
f/7 |
| Focal Length |
420mm |
| Focuser Options |

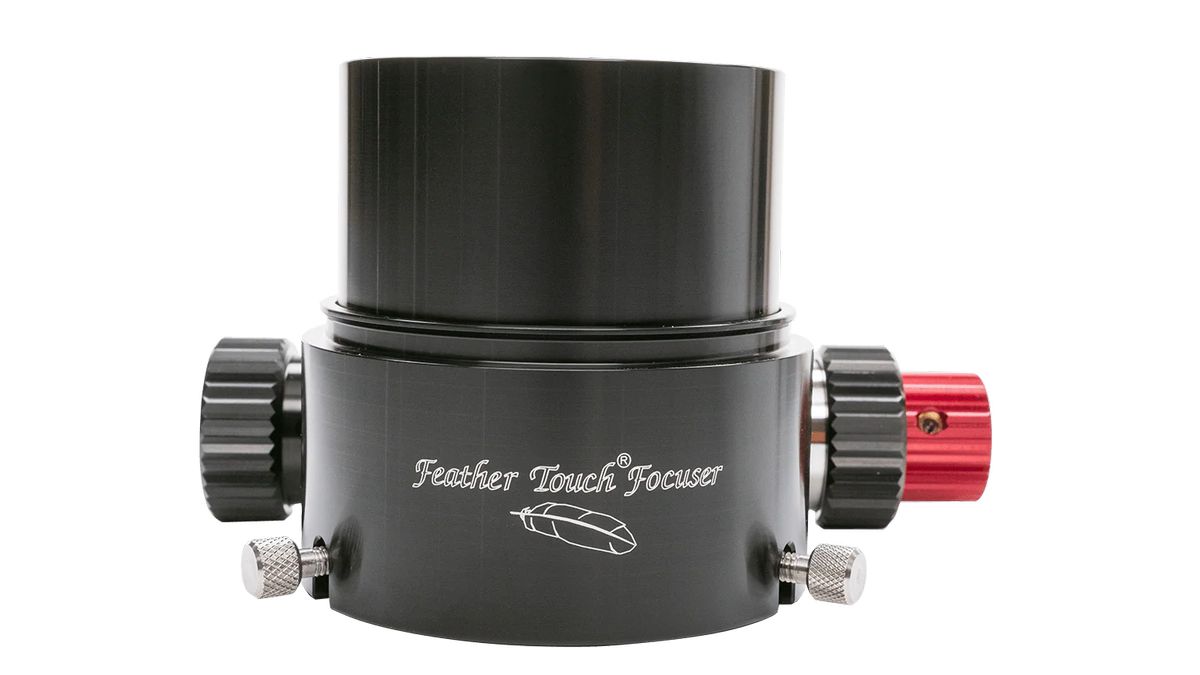

Dual Speed Lunt Crayford, Dual Speed Rack & Pinion, Dual Speed Feather Touch |
| Mounting |
CNC Clamshell Mount with Vixen Style Dovetail |
| Storage |
Aluminum Finished Hard Case with Fitted Foam |
| H-alpha Etalon Type |
Modular |
| Etalon Wavelength |
656.28 nm |
| Etalon Bandpass |
<0.65 Å (Single Stack), <0.45 Å (Double Stack) |
| Etalon Material |
UV Grade Fused Silica |
| Telescope Weight |
3.17kg
|
| Etalon Tuning |
Doppler True Barometric Pressure Tuning (Instant Doppler Shifting) |
| Blocking Filter Sizes |
6mm, 12mm, 18mm (Diagonal & Straight Through) |
| Blocking Filter Bandpass |
6 Å |
| Sun Finder |
TeleVue Sol Searcher compatible |
| CaK Filter Type |
Rear Mount CaK Diagonal |
| CaK Filter Sizes |
12mm, 18mm (Diagonal & Straight Through) |
| CaK Filter Wavelength |
393.4 nm |
| CaK Bandpass |
2.2 Å |
| White Light Filter |
Front Mount Film Filter or Rear Mount White Light Wedge |
| White Light Bandpass |
Broadband White Light with AR/UV Blocking |
| Other Uses |
Converts to a conventional professional-grade telescope for Lunar, Planetary, Deep Space, and Terrestrial observing |
| Theoretical Max Magnification |
100x |
