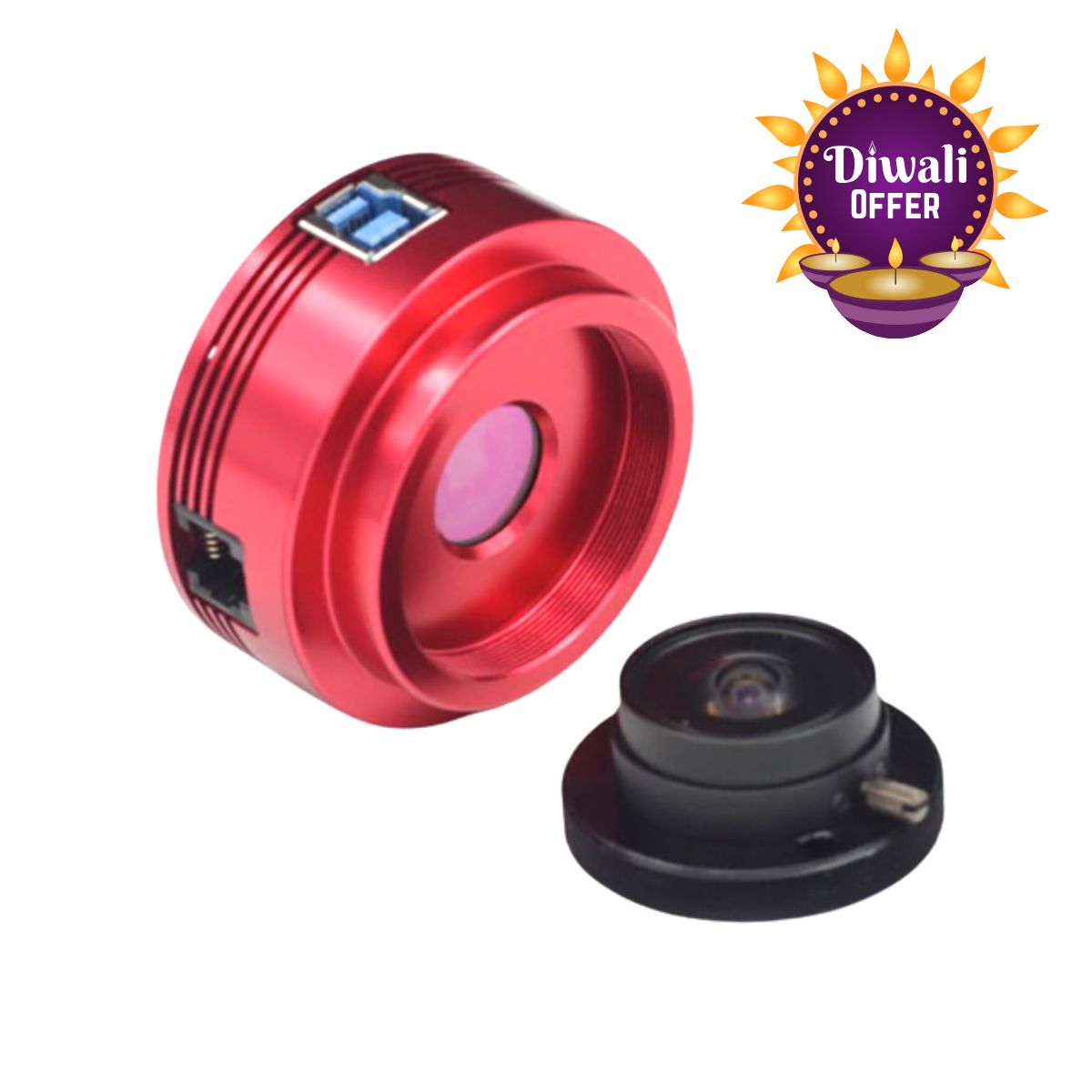

ZWO ASI120MC-S Camera
Camera Sensor
ASI120 camera integrates AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels. The pixel size is 3.75 μm x 3.75 μm. This camera provides 12bit ADC.
Astrophotography Performance
ASI120S is a lightning-fast and sensitive USB3.0 camera. Up to 60FPS under 1280X960 full resolution! With a peak QE of 75%, beyond ICX618 and with no FPN(Fixed pattern Noise)! Long exposure supported up to 1000s! Full compatible with USB 2.0 USB Host!
Absolute QE Curve
REVIEW of ZWO ASI120MC-S Camera 👇
USB 3.0 Port & ST4 Port
USB 3.0 Port: Can provide 5Gb bandwidth to let ASI120S run at 60 fps (10bit, high speed mode) at full resolution(1.2Mega).
ST4 Port: Can be used connect with auto guide port of mount, for guiding.
Mechanical Diagram
What is in the box?
AVAILABILITY GDATE
2/6/2023
BEST USE
Astro Photography|Best for Planets
BRAND
ZWO
COLOR MONO
Color
COOLED
No
COUNTRY OF ORIGIN
China
FPS
60
G MPN
ZWO ASI120MC -S
GOOGLE ADS
zwo-google-ads
GTIN
6.12E+11
PIXEL SIZE
3.75
PRODUCT GTYPE
Camera
MEGA PIXEL
1.23
SENSOR DIAGONAL
6
SHIPPING GLABEL
Freeshipping
WARRANTY
2 Years Limited Warranty
WEIGHT
100
RESOLUTION
1280x960
SENSOR TYPE
CMOS
SENSOR SIZE
1/3"
SENSOR DIMENSIONS (MM X MM)
4.8x 3.6
QE PEAK
75%
FULL WELL
13Ke
READ NOISE
4.0e
BACK FOCUS (MM)
12.5
INTERFACE
USB3.0/USB2.0
IN THE BOX
ZWO ASI120MC-S Camera Body with All-Sky Lens | 2m ST4 Cable | 1.25″ Cover | M42-1.25″ T-Mount | 2m | USB 3.0 Cable | Instructions for downloading drivers and software from ZWO website
