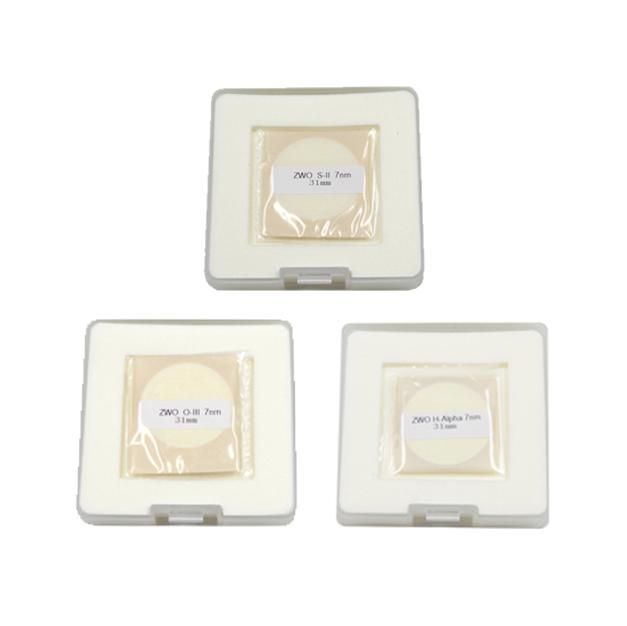

ZWO New Narrowband 31mm Filter - 31mm Ha SII OIII 7nm set

ZWO New narrowband 31mm filter

Narrowband filter do not eliminate the effects of light pollution or increase the object’s brightness. In many cases, they increase the contrast between nebula and night sky, not brightening the nebula.

Technical Parameter:

Name: ZWO narrowband 31mm filter Size: D=31mm Thickness: 2mm The ZWO  H-Alpha filter  has a bandpass of  7nm and passes light at 656nm  wavelength, light transmission rate comes up to 80%. Best choice of narrowband H-alpha astrophotography filter for high-contrast imaging and revealing rich details of the nebula even in areas with strong light pollution, just prepare to experience the infinite fun with it !

The ZWO narrowband S-II 7nm filter passes light at 672nm wavelength with a bandpass of 7nm which is designed for nebula observation . It is suitable for visual observation on most emission nebulae, planetary nebulae and supernova remnants, use it with H-alpha and OIII narrowband filters (SHO Set) for tricolor CCD astrophotography.

The ZWO narrowband O-III 7nm filter is designed for nebula observation allowing 7nm bandwidth of light centered on a wavelength of 500nm through,  which corresponds to OIII emission lines, blocking out all other light.  Adding the ZWO O-III Narrowband filter to your imaging collection will help you go beyond the RGB imaging and will help capture your favorite nebulas in a totally new light, no matter how polluted your skies may be!

• Hubble look of images can be made by the combination of H-alpha, OIII-CCD and SII-CCD, such as the famous “Pillars of Creation” (M16 Eagle Nebula)
• Narrowband imaging with SHO set (H-alpha, OIII-CCD and SII-CCD) can be done with the moon up in heavy light pollution, so your equipment is not sitting dormant for several weeks

• H-alpha filter is the first narrowband addition to LRGB set for most imagers who blend a black-and-white Ha image into RGB data to enhance structural detail while maintaining natural look

New OIII filter: Both side will be fine.

Technical Data

• FWHM?7±0.5nm
• Glass Thickness 2.0+/-0.03 mm  (31mm/36mm)
• Fine-optically polished to ensure accurate 1/4 wavefront  over the both surfaces
• About 90% transmission at H-alpha line 656nm (H-Alpha filter )
• About 90% transmission at SII line 672nm (SII filter )
• About 90% transmission at major OIII line 500nm (OIII filter )
• Infrared wavelength 700-1100nm cut-off
• <0.1% transmission of off-band, OD3(Optical Density)

Transmission Curve

Here is a test of ZWO Ha Filters (ASI1600 mono camera, single frame, 300s, DDP in MaximDL) :
