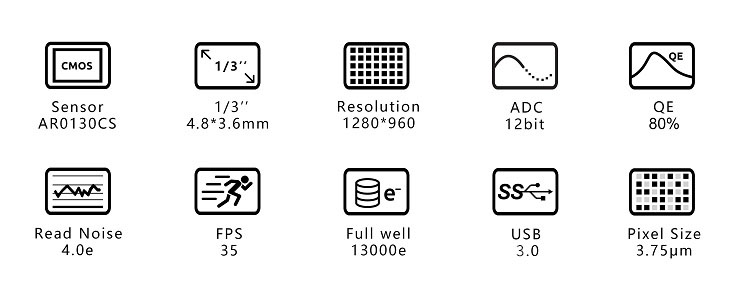

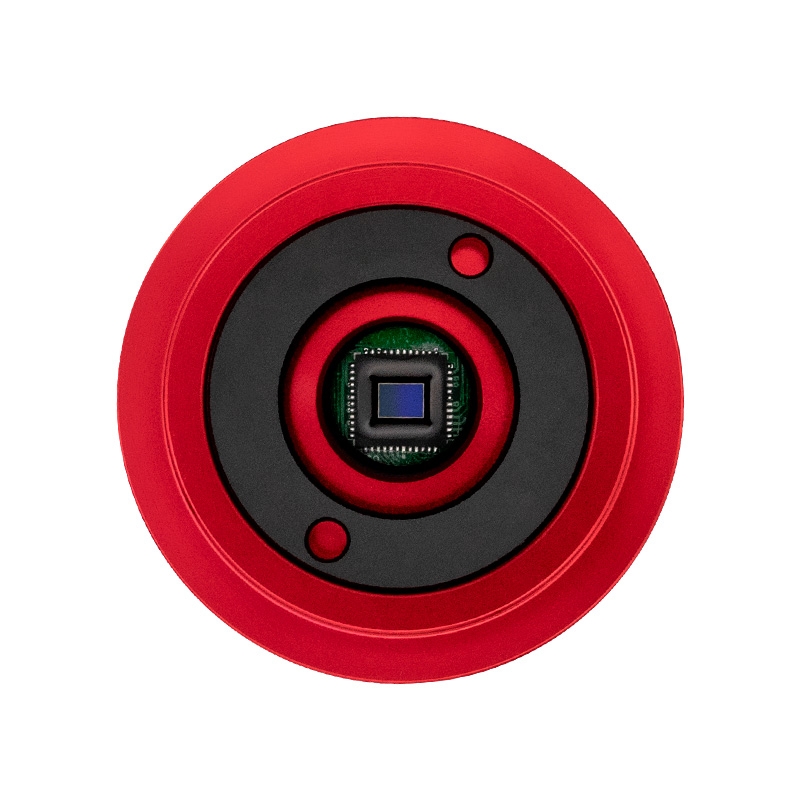

ASI120 camera integrates AR0130CS 1/3? sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels. The pixel size is 3.75 ?m x 3.75 ?m. This camera provides 12bit ADC.

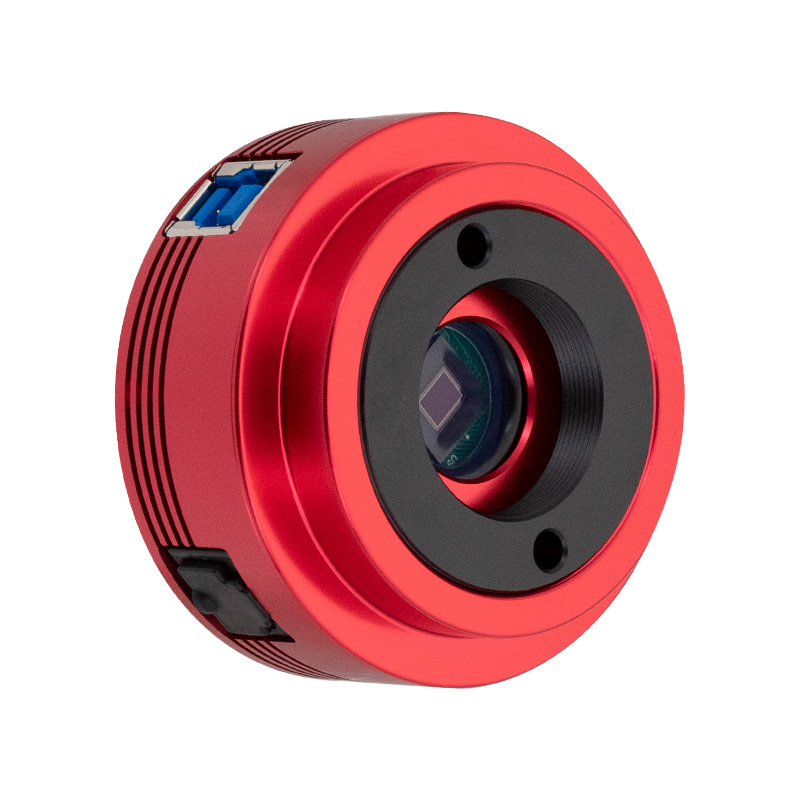

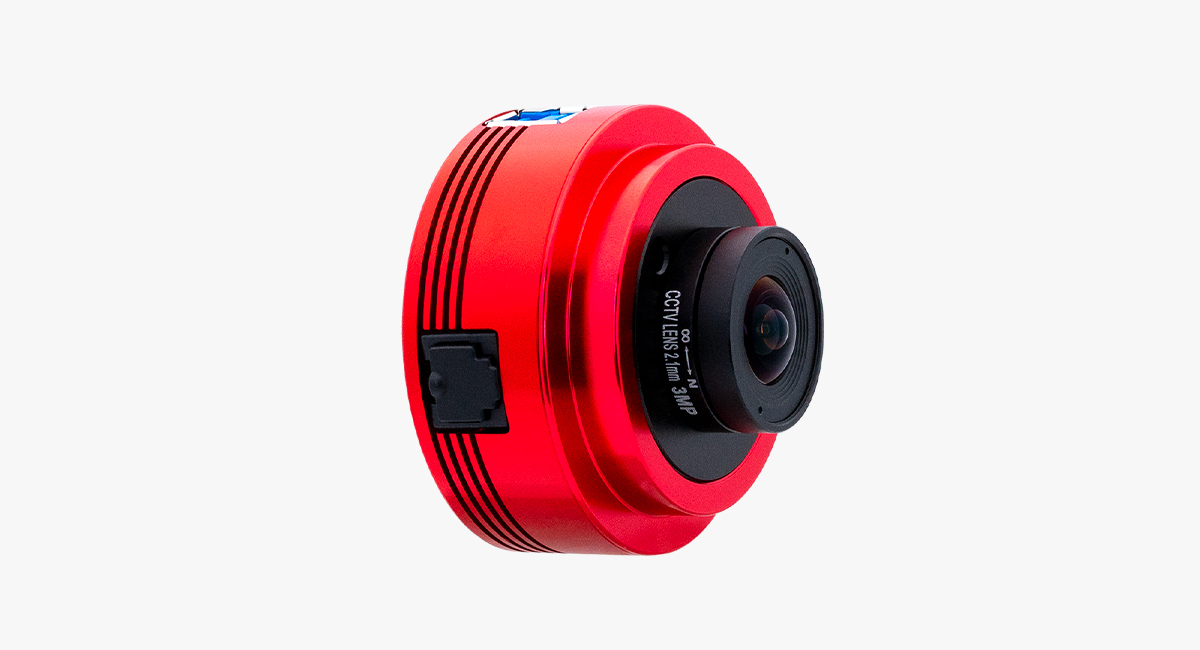

ASI120S is a lightning-fast and sensitive USB3.0 camera. Up to 60FPS under 1280X960 full resolution! With a peak QE almost 80%, beyond ICX618 and with no FPN(Fixed pattern Noise)! Long exposure supported up to 2000s! Full compatible with USB 2.0 USB Host!

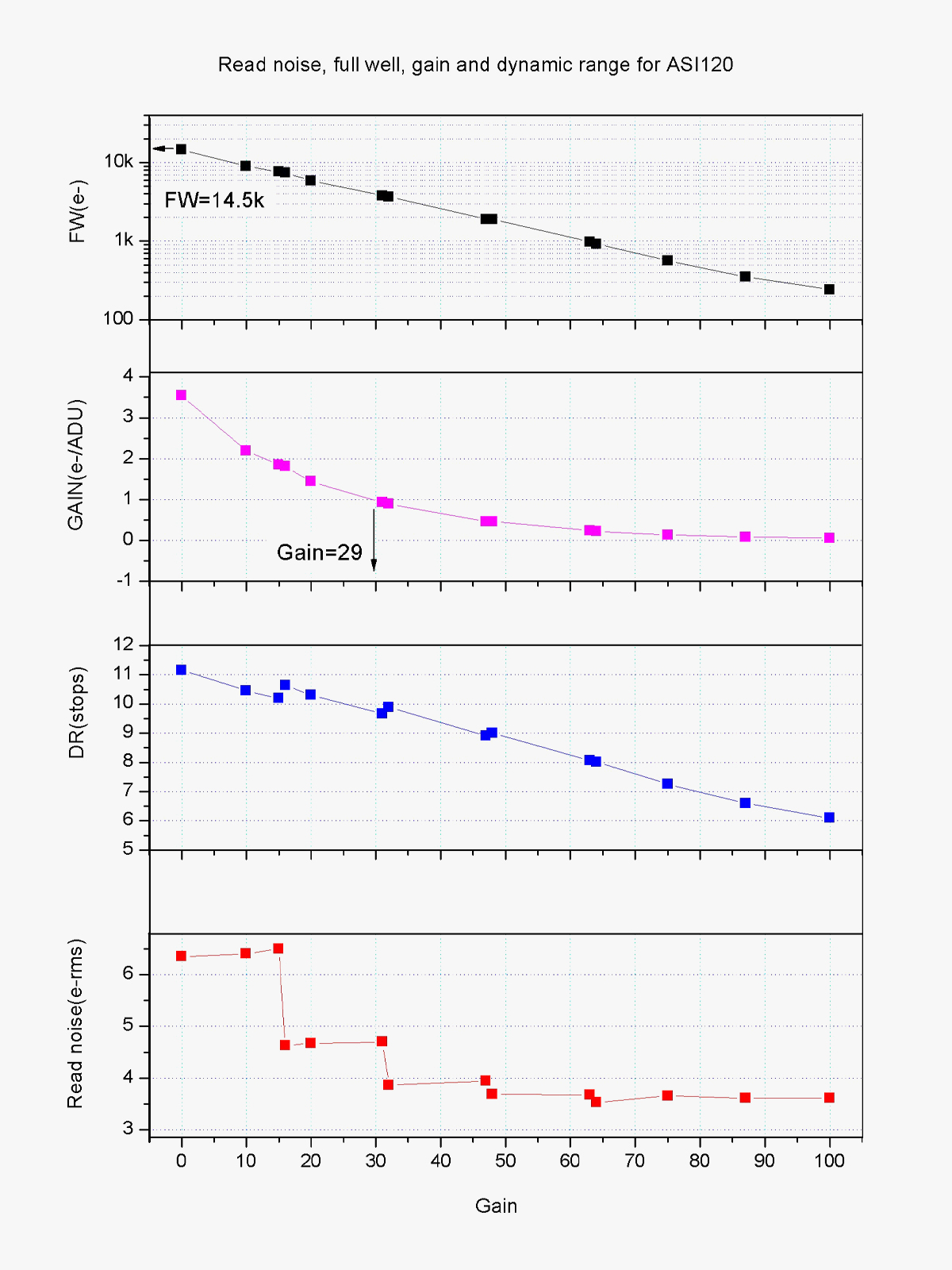

Regarding the absolute QE Curve, we estimate the Peak Value to be almost 80%.
USB 3.0 Port: Can provide 5Gb bandwidth to let ASI120S run at 60 fps (10bit, high speed mode) at full resolution(1.2Mega).
ST4 Port: Can be used connect with auto guide port of mount, for guiding.
