Vorion Scientific VIXEN STYLE – SPRING LOADED SYSTEMS

MADE IN INDIA

Versatile Vixen Clamps

Material : 6000 Series Aluminium

Locking Knob & Other Fasteners : SS

Profile : Vixen

Features :

• ALL CNC
• ALL SIDE CHAMFERED – SMOOTH FINISH
• SS KNURLED KNOB with extra leverage hole
• None Opening Knurled Knob
• Both Tapping’s & Counterbores provided to utilize this mount with any side of the dovetail or any other mounting base
• Different Size length provided

Specifications & Dimensions are as follows :

All Dimensions are in mm !!!

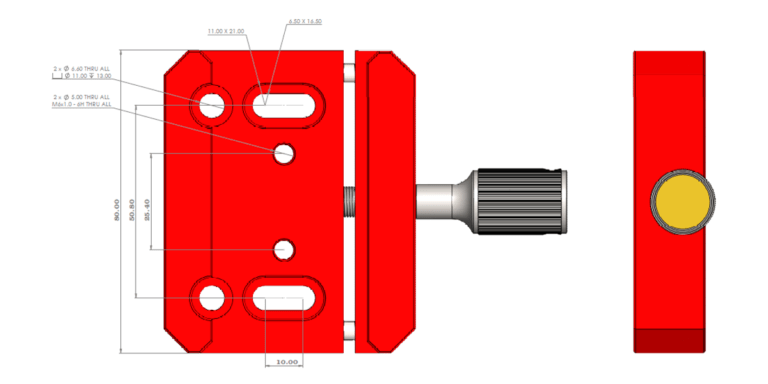

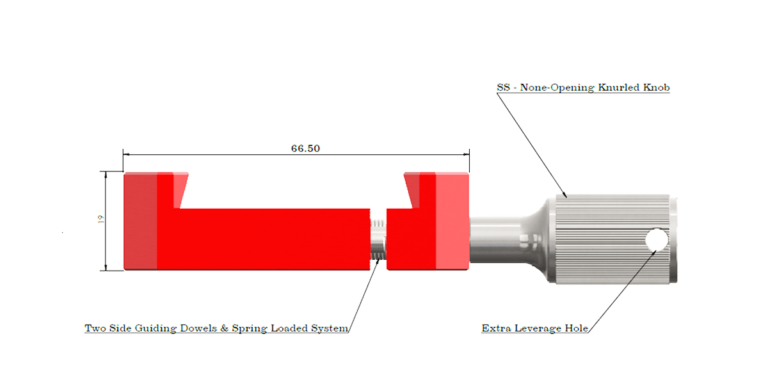

80mm VIXEN CLAMP SPECS are as below :
