Vorion Scientific Observatory Pier Adapter Plate For ZWO AM5 Mount

Vorion Scientific Observatory Pier Adapter Plate for ZWO AM5 Mount

Precision-Engineered Mounting Interface for Permanent Observatory Installations

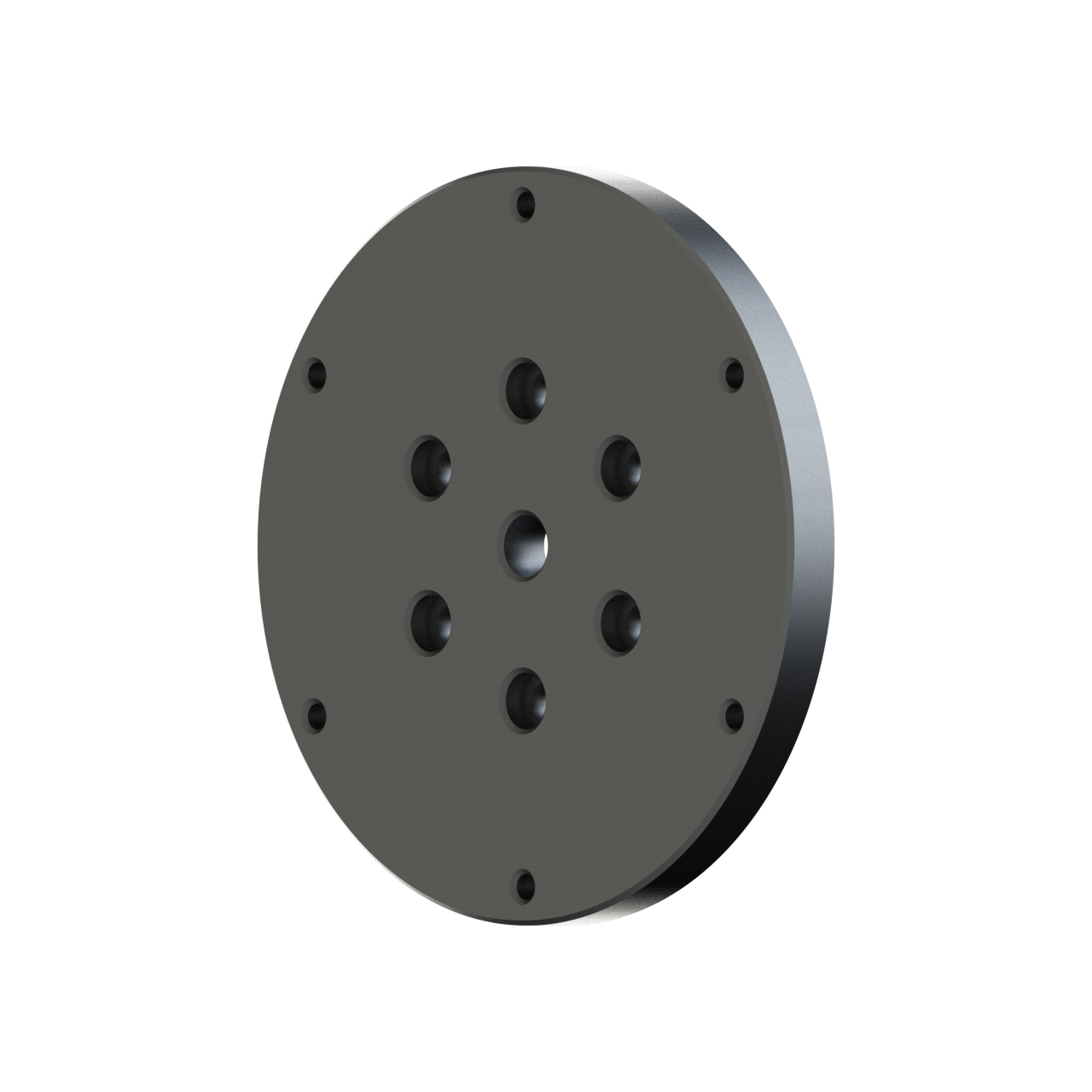

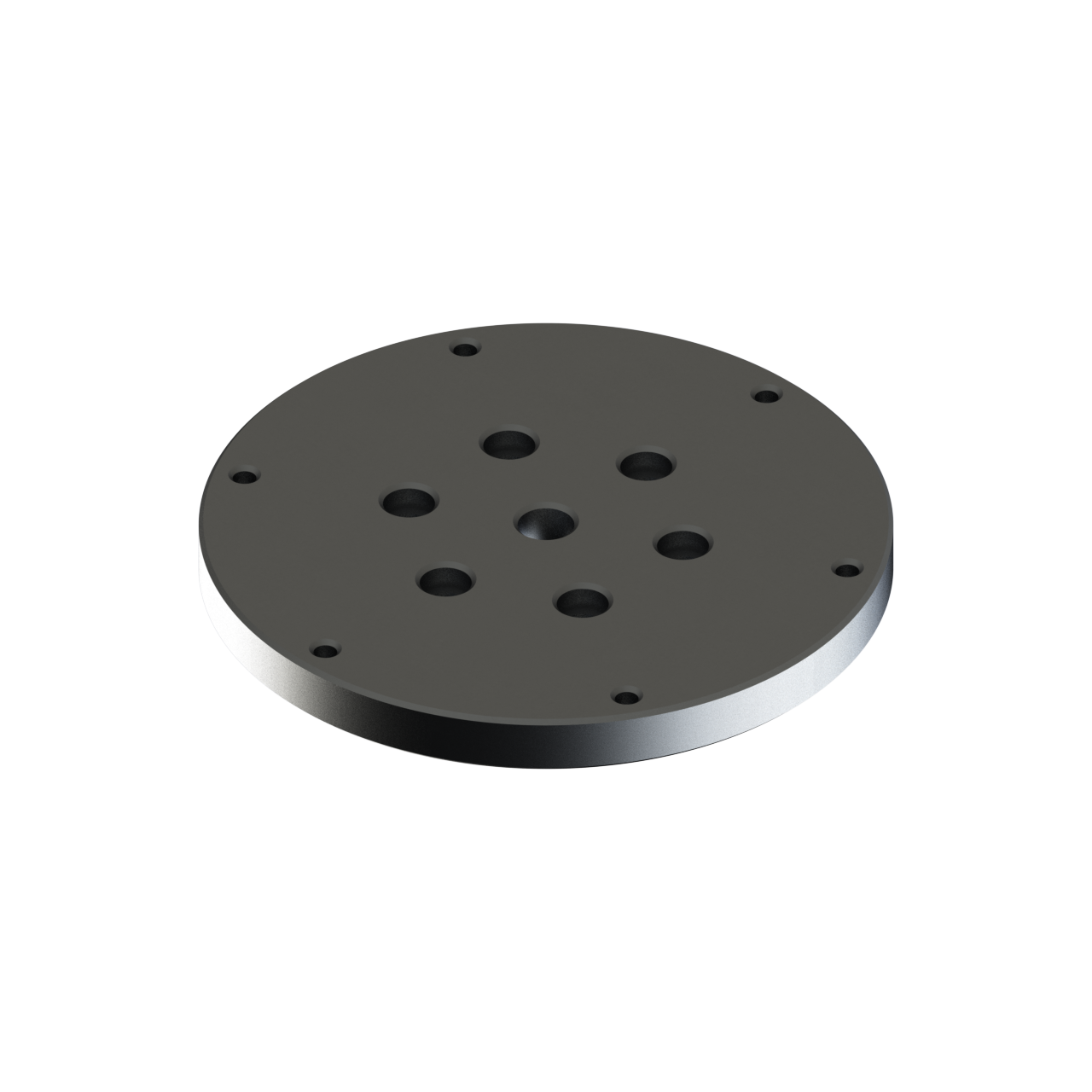

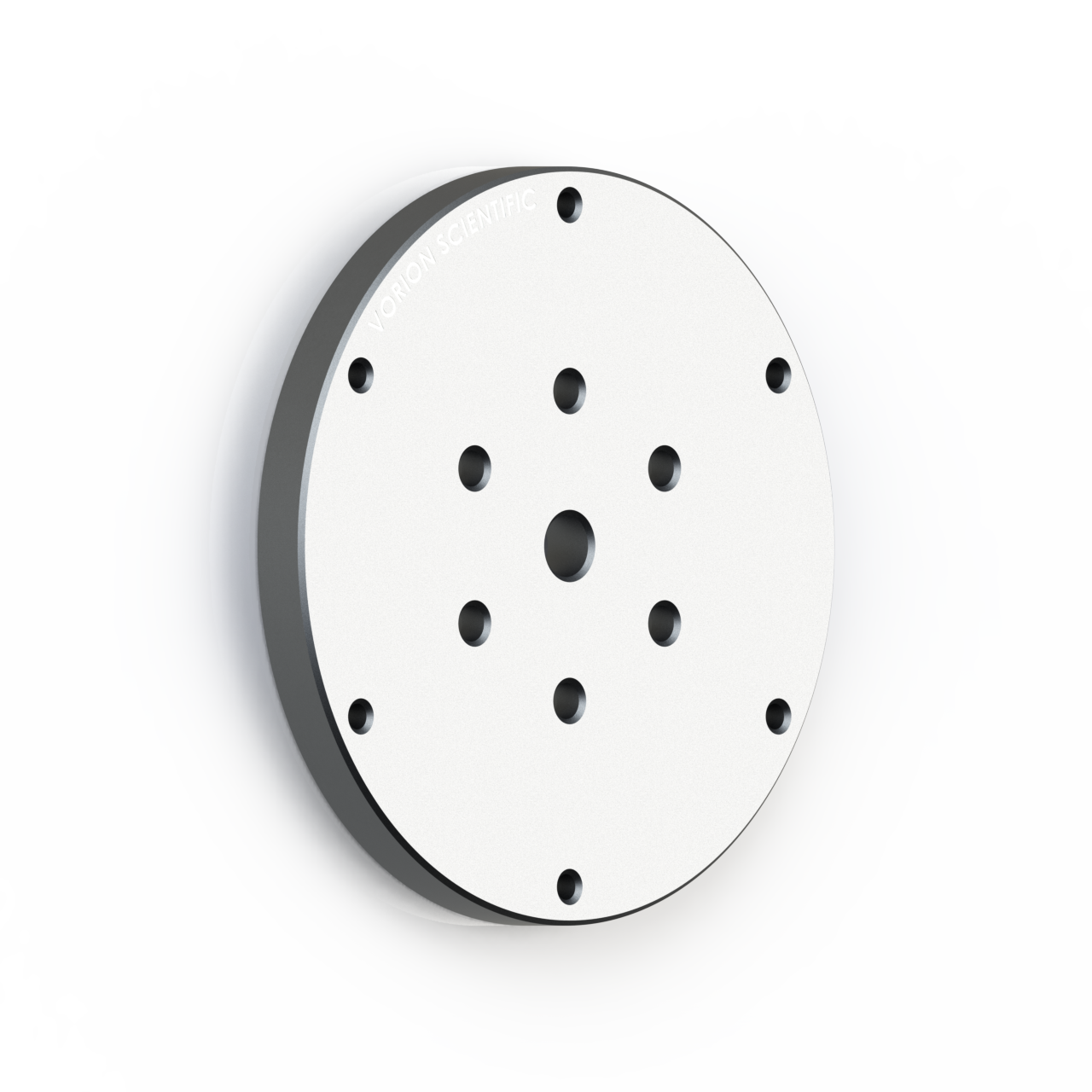

The Vorion Scientific Observatory Pier Adapter Plate for ZWO AM5 Mount is a precision-machined mounting solution designed to integrate the ZWO AM5 harmonic drive telescope mount with the Vorion Scientific Observatory Pier.

Manufactured from high-quality Aluminium 6061 and finished with black anodizing, this adapter plate combines structural rigidity, corrosion resistance, and a professional appearance suitable for dedicated astronomical installations.

Its precisely machined mounting-hole arrangement provides a secure mechanical interface between the ZWO AM5 mount and the Vorion Scientific Observatory Pier, enabling astronomers to establish a fixed telescope installation without relying on a conventional portable tripod.

Designed for astrophotographers, research institutions, educational observatories, and astronomy enthusiasts, this adapter plate offers a practical solution for permanent and semi-permanent observatory configurations.

Key Features

• Purpose-Built for ZWO AM5 Mount: Specifically designed to accommodate the ZWO AM5 harmonic drive telescope mount, providing a dedicated mounting interface for observatory pier installations.
• Precision-Machined Aluminium 6061: Manufactured from Aluminium 6061, offering an excellent combination of strength, dimensional stability, machinability, and reduced weight compared with steel alternatives.
• Black Anodized Surface Finish: Provides enhanced surface protection, corrosion resistance, and a refined appearance that complements modern astronomical equipment.
• Compatible with Vorion Scientific Observatory Pier: Designed to integrate with the Vorion Scientific Observatory Pier system, enabling a dedicated mounting arrangement for permanent telescope installations.
• Secure Mechanical Integration: Incorporates precisely positioned mounting holes for connecting the ZWO AM5 telescope mount to the observatory pier assembly.
• Designed for Dedicated Observatory Applications: Suitable for personal observatories, roll-off roof observatories, astrophotography facilities, and institutional astronomical installations.





Technical Specifications

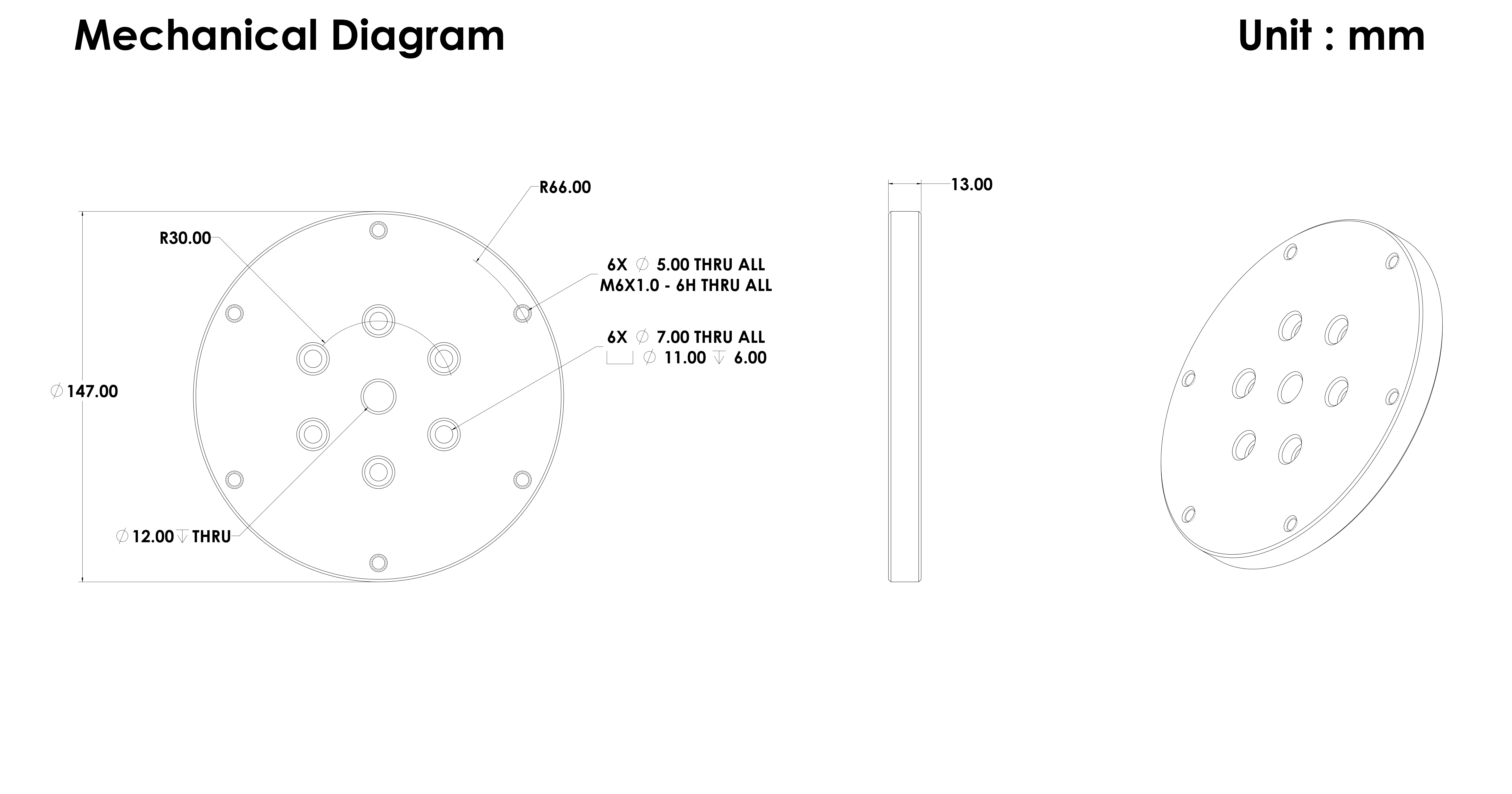

Note: All dimensions are in millimetres. Please refer to the product mechanical drawing for detailed mounting dimensions.

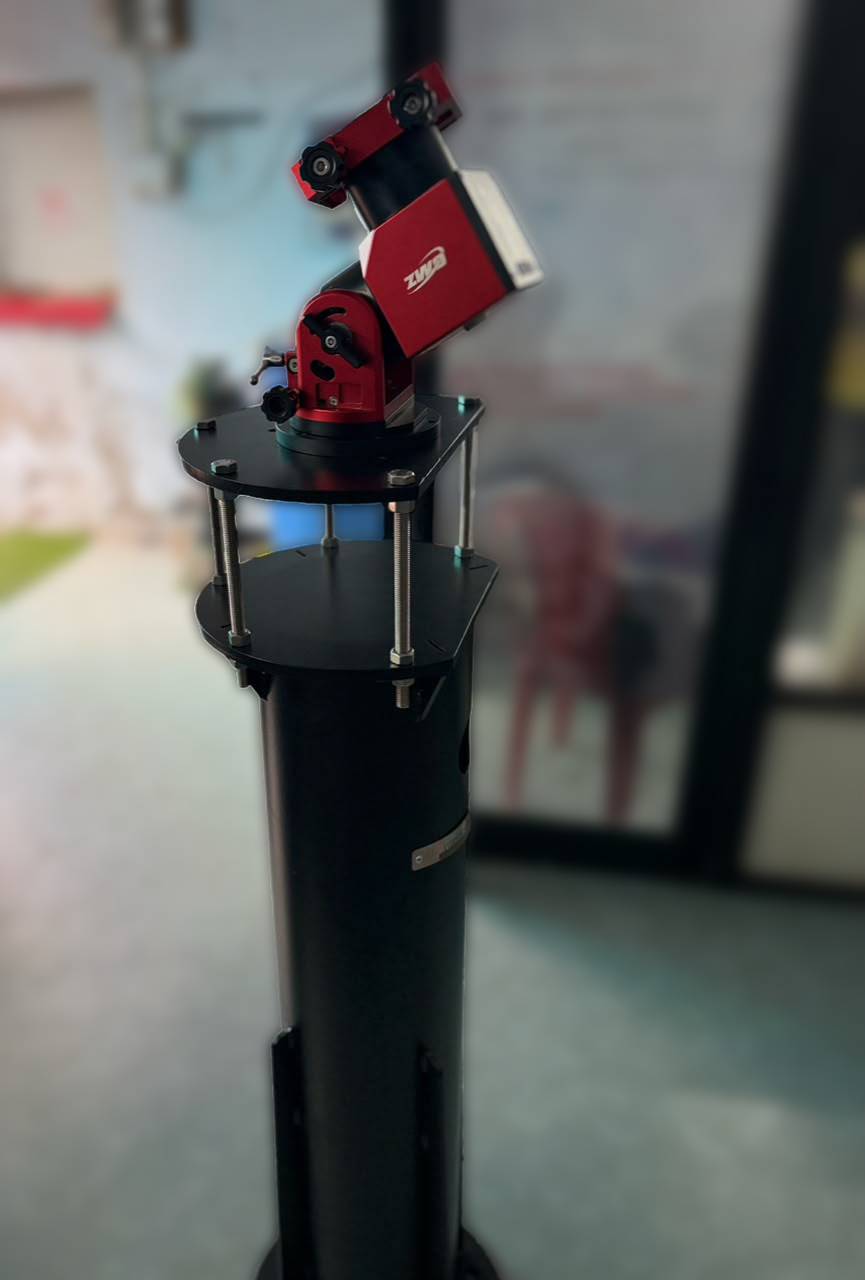

Seamless Integration with Vorion Scientific Observatory Pier

The Vorion Scientific AM5 Adapter Plate is designed to work with our Observatory Pier system, providing a complete mechanical mounting solution for astronomers transitioning from portable telescope setups to dedicated observatory installations.

By combining the AM5 Adapter Plate with the Vorion Scientific Observatory Pier, users can establish a fixed mounting platform for the ZWO AM5 harmonic drive telescope mount.

This configuration is particularly suitable for observatories where telescope equipment remains installed for extended periods, reducing the need for repeated tripod assembly and simplifying the mechanical setup.

Applications

• Permanent and semi-permanent astronomical observatories
• Roll-off roof observatory installations
• Dedicated astrophotography setups
• University and institutional astronomy facilities
• Research and educational telescope installations
• Personal backyard observatories

Package Contents

• 1 × Vorion Scientific Observatory Pier Adapter Plate for ZWO AM5 Mount and Fastners

Important: The ZWO AM5 telescope mount, observatory pier, and other accessories are not included unless otherwise specified. Customers using an existing pier or a different mounting system should verify mechanical compatibility before ordering.
