Vorion Scientific Observatory Pier Adapter Plate For Celestron CGX-L Mount

Vorion Scientific Observatory Pier Adapter Plate for Celestron CGX-L Mount

Precision-Engineered Mounting Interface for Dedicated Observatory Installations

The Vorion Scientific Observatory Pier Adapter Plate for Celestron CGX-L Mount is a purpose-designed mounting solution developed to integrate the Sky-Watcher AZ-EQ6 telescope mount with the Vorion Scientific Observatory Pier.

Precision-machined from Aluminium 6061 and finished with black anodizing, this adapter plate provides a robust mechanical interface for fixed telescope installations, combining structural rigidity, dimensional accuracy, and corrosion resistance.

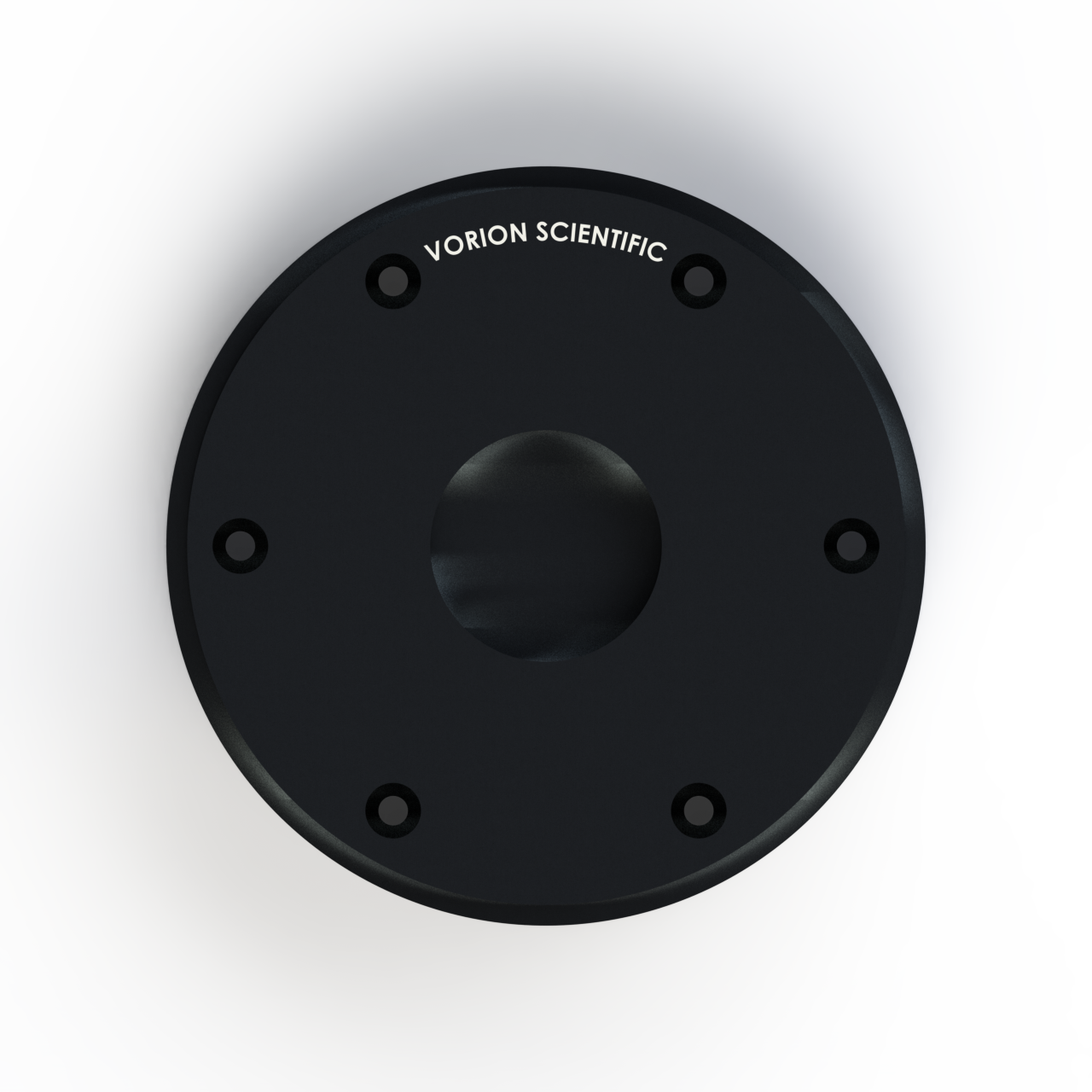

Its circular construction incorporates a recessed central mounting profile, dedicated threaded mounting points, and six counterbored peripheral fastening holes, enabling secure mechanical integration between the telescope mount and the observatory pier assembly.

Designed for astrophotographers, research institutions, educational observatories, and astronomy enthusiasts, this adapter plate offers a practical solution for permanent and semi-permanent telescope installations.

Key Features

• Purpose-Built for Celestron CGX-L Mount: Designed to accommodate the Celestron CGX-L Telescope Mount, providing a dedicated mounting interface for observatory pier installations.
• Precision-Machined Aluminium 6061: Manufactured from Aluminium 6061, offering an excellent combination of strength, dimensional stability, machinability, and reduced weight compared with steel alternatives.
• Black Anodized Surface Finish: Provides enhanced surface protection, corrosion resistance, and a refined appearance that complements modern astronomical equipment.
• Compatible with Vorion Scientific Observatory Pier: Designed to integrate with the Vorion Scientific Observatory Pier system, enabling a dedicated mounting arrangement for permanent telescope installations.
• Recessed Central Mounting Profile: Incorporates a precision-machined circular recess and central through-hole arrangement for mechanical integration with the telescope mounting assembly.
• Six Counterbored Mounting Holes: Features six equally spaced peripheral counterbored mounting holes for secure fastening to the compatible observatory pier assembly.
• Designed for Dedicated Observatory Applications: Suitable for personal observatories, roll-off roof observatories, astrophotography facilities, and institutional astronomical installations.

Technical Specifications

Note: All dimensions are in millimetres. Please refer to the product mechanical drawing for detailed mounting dimensions and installation requirements.

Seamless Integration with Vorion Scientific Observatory Pier

The Vorion Scientific CGX-L Adapter Plate is designed to work with our Observatory Pier system, providing a complete mechanical mounting solution for astronomers transitioning from portable telescope setups to dedicated observatory installations.

By combining the CGX-L Adapter Plate with the Vorion Scientific Observatory Pier, users can establish a fixed mounting platform for the Celestron CGX-L Astronomy Mount.

This configuration is particularly suitable for observatories where telescope equipment remains installed for extended periods, reducing the need for repeated tripod assembly and simplifying the mechanical setup.

Applications

• Permanent and semi-permanent astronomical observatories
• Roll-off roof observatory installations
• Dedicated astrophotography setups
• University and institutional astronomy facilities
• Research and educational telescope installations
• Personal backyard observatories

Package Contents

• 1 × Vorion Scientific Observatory Pier Adapter Plate for Celestron CGX-L Mount with fastners

Important: The Celestron CGX-L telescope mount, observatory pier, and other accessories are not included unless otherwise specified. Customers using an existing pier or a different mounting system should verify mechanical compatibility before ordering.
