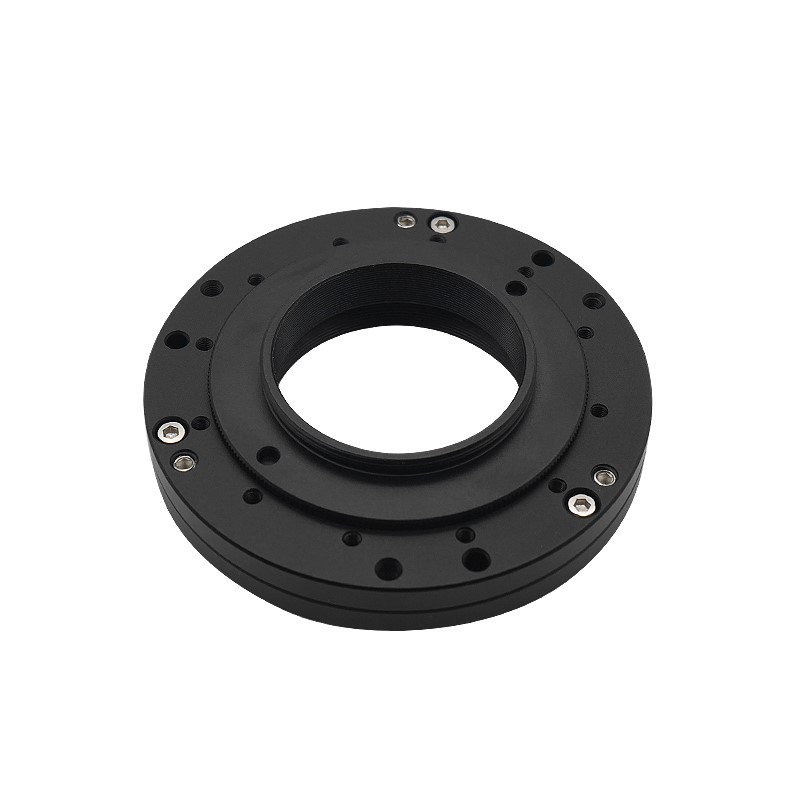

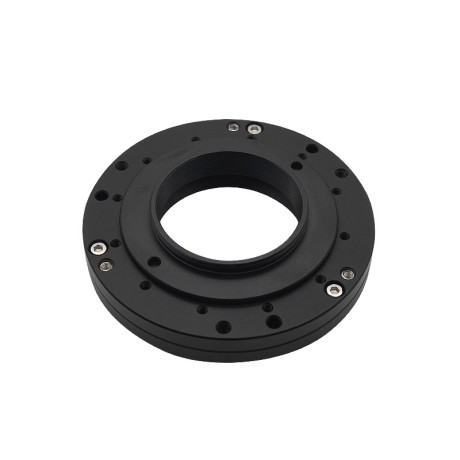

ZWO T2 Tilter-II Adapter

The New T2 tilter adds multiple screw holes to help connect to ZWO EFW (compatible to 2” EFW filter wheel).

Package and size

Main body: Diameter 78mm，11mm without the T2-T2 adapter

T2-T2 adapter: Thickness 2mm

Interface: T2 (M42*0.75 thread) each side

Product usage

1. Mainly used to reduce newton ring when imaging ha-solarï¼›
2. Also used to adjust the camera imaging plane by rotating the six bolts in the main camera body when the sensor plane is uneven.

Applicable cameras

All ASI cameras except ASI071, ASI2600 and ASI6200.

Connection method

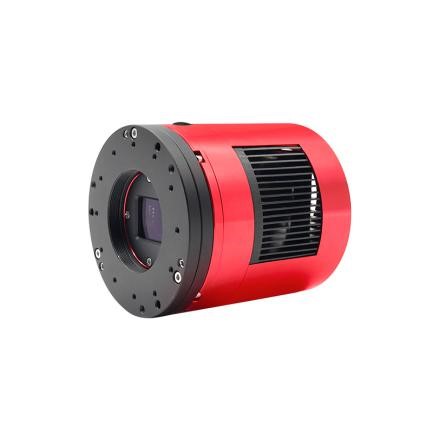

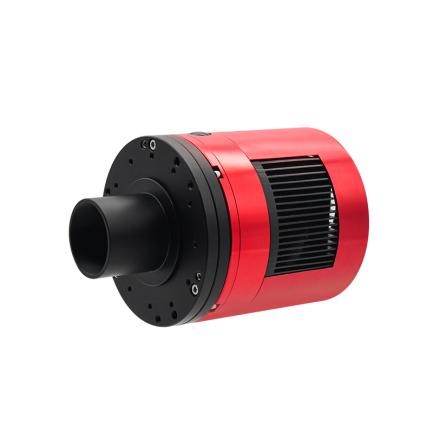

1. Cooled camera: ASI294/ASI1600/ASI183/ASI533

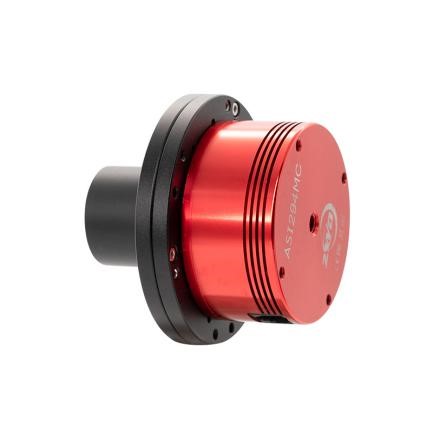

2. Non-cooled camera:

ASI294/ASI1600/ASI183/ASI174

These cameras do not need to connect to the T2-T2 adapter

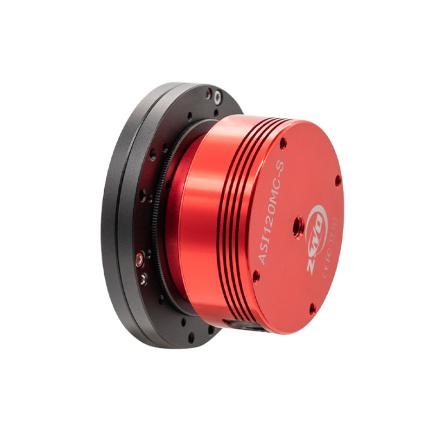

ASI178/ASI290/ASI224/ASI120

These cameras need to connect to the T2-T2 adapter first.

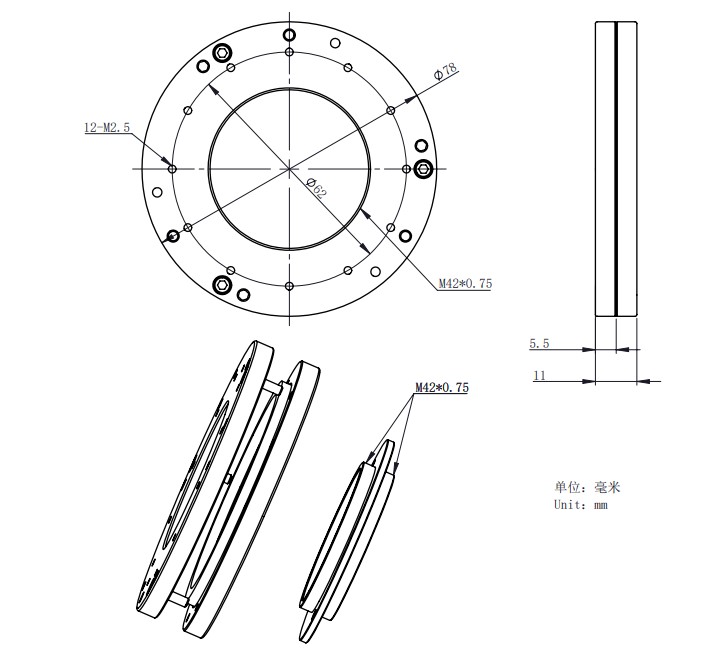

Mechanical drawing

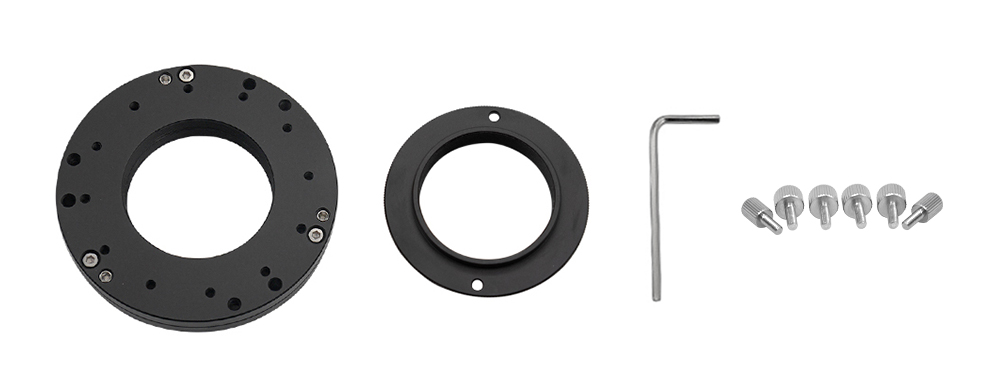

What’s in the box?

T2 tilter *1

T2-T2 adapter *1

Hexagon wrench *1

Screw*6
