OPTICAL TUBE INFO: |
|
Optical Design: |
Newtonian Reflector |
Aperture: |
114mm (4.48″) |
Focal Length: |
450mm (17.71″) |
Focal Ratio: |
f/3.95 |
Focal Length of Eyepiece 1: |
25mm (.98″) |
Magnification of Eyepiece 1: |
18x |
Focal Length of Eyepiece 2: |
9mm (.35″) |
Magnification of Eyepiece 2: |
50x |
Finderscope: |
StarPointer™ red dot finderscope |
Star Diagonal: |
None |
Optical Tube: |
Steel |
Highest Useful Magnification: |
269x |
Lowest Useful Magnification: |
16x |
Limiting Stellar Magnitude: |
12.8 |
Resolution (Rayleigh): |
1.22 arc seconds |
Resolution (Dawes): |
1.02 arc seconds |
Light Gathering Power (Compared to human eye): |
265x |
Secondary Mirror Obstruction: |
34mm (1.34″) |
Secondary Mirror Obstruction by Diameter: |
30% |
Secondary Mirror Obstruction by Area: |
9% |
Optical Coatings: |
Aluminum w/SiO2 |
Optical Tube Length: |
457.2mm (18″) |
Optical Tube Diameter: |
127mm (5″) |
Optical Tube Weight: |
3.8 lbs (1.72kg) |
Dovetail: |
CG-5 Dovetail bar |
MOUNT INFO: |
|
Mount Type: |
Computerized Altitude-Azimuth Single Fork Arm |
Instrument load capacity: |
8 lbs (3.6 kg) |
Height adjustment range (includes mount and tripod): |
762mm – 1270mm (30″ – 50″) |
Tripod Leg Diameter: |
31.75mm (1.25″) steel |
Mount Head Weight: |
5 lbs (2.3kg) |

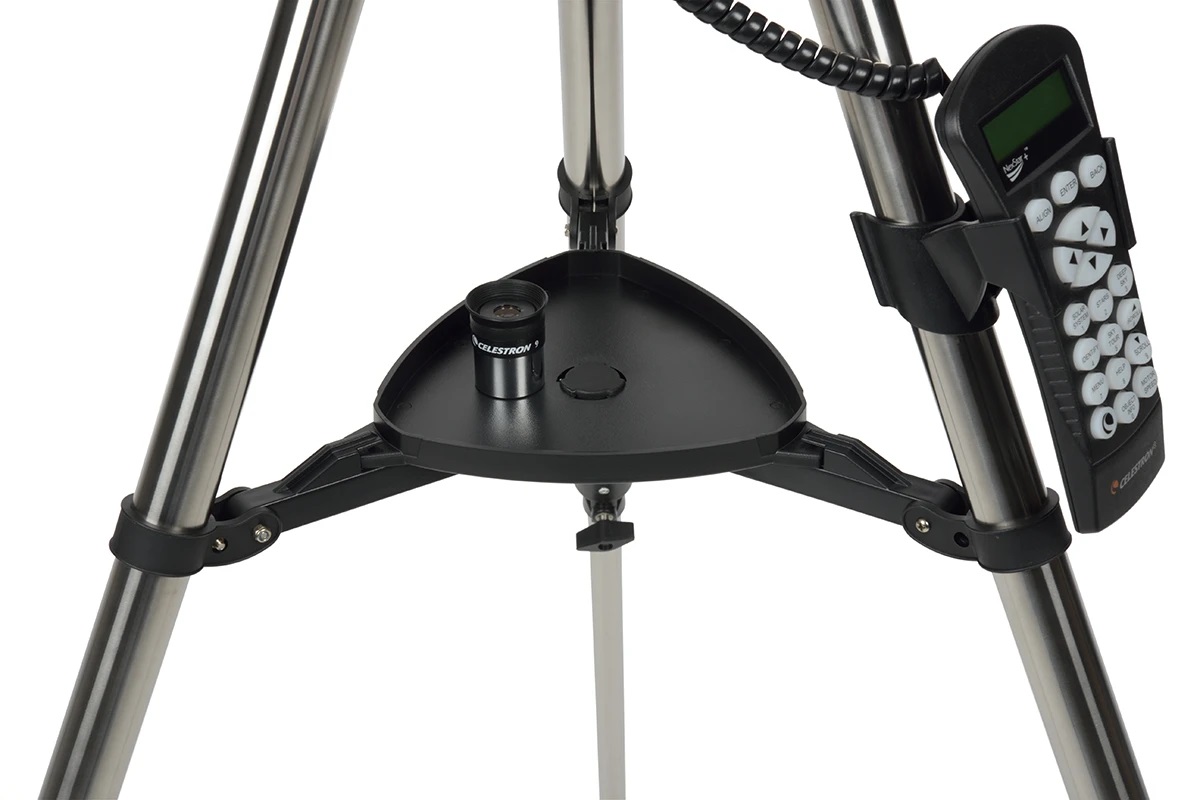

Accessory Tray: |
Yes |
Tripod Weight: |
5 lbs (2.3kg) |
Slew Speeds: |
Nine slew speeds |
Tracking Rates: |
Sidereal, Solar and Lunar |
Tracking Modes: |
Alt-Az, EQ North and EQ South |
GPS: |
No |
Dovetail Compatibility: |
CG-5 saddle plate |

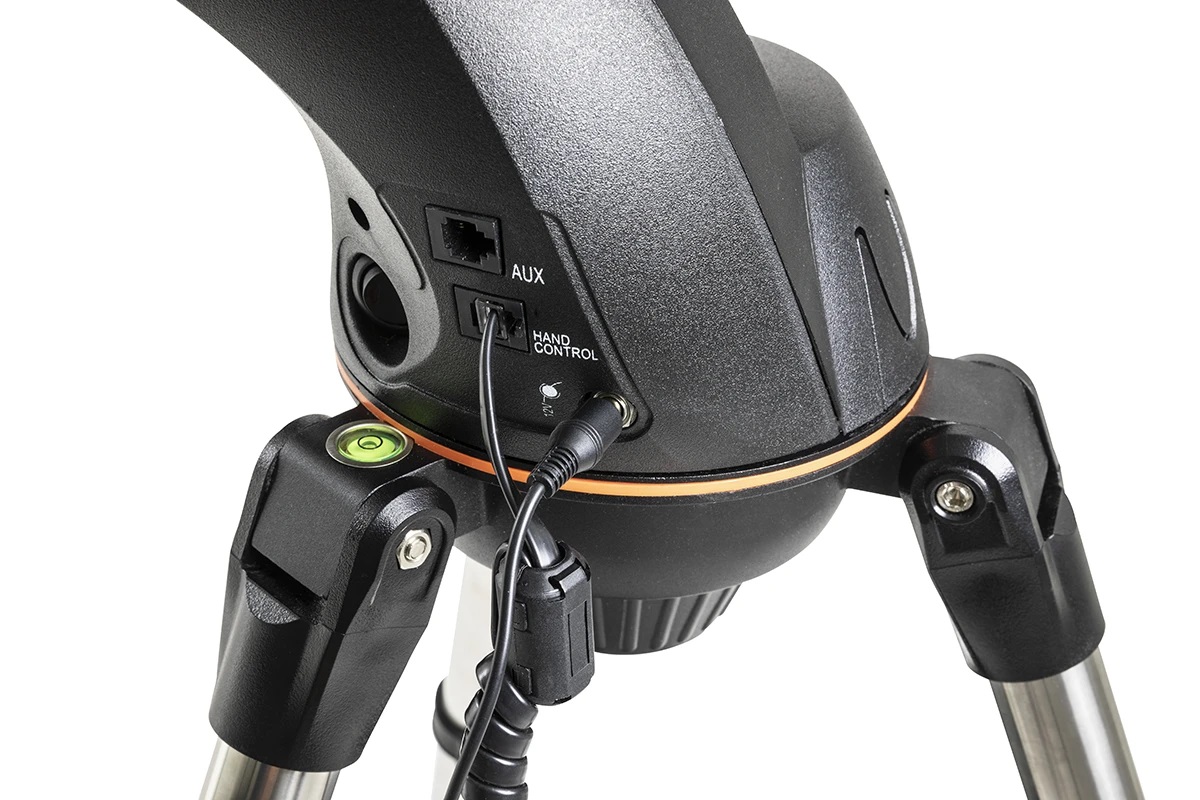

Number of Auxiliary ports: |
1x Aux port | 1x hand control port (hand control can use either port) |
Autoguide port: |
No |
USB Port: |
Yes, Input on hand control |
Power Requirements: |
12 VDC – 8xAA Batteries (not included) |
Motor Drive: |
Computerized Altitude-Azimuth Single Fork Arm |
Alignment Procedures: |
SkyAlign, Auto 2-Star Align, 1-Star Align, 2-Star Align, Solar System Align |
Periodic Error Correction: |
No |

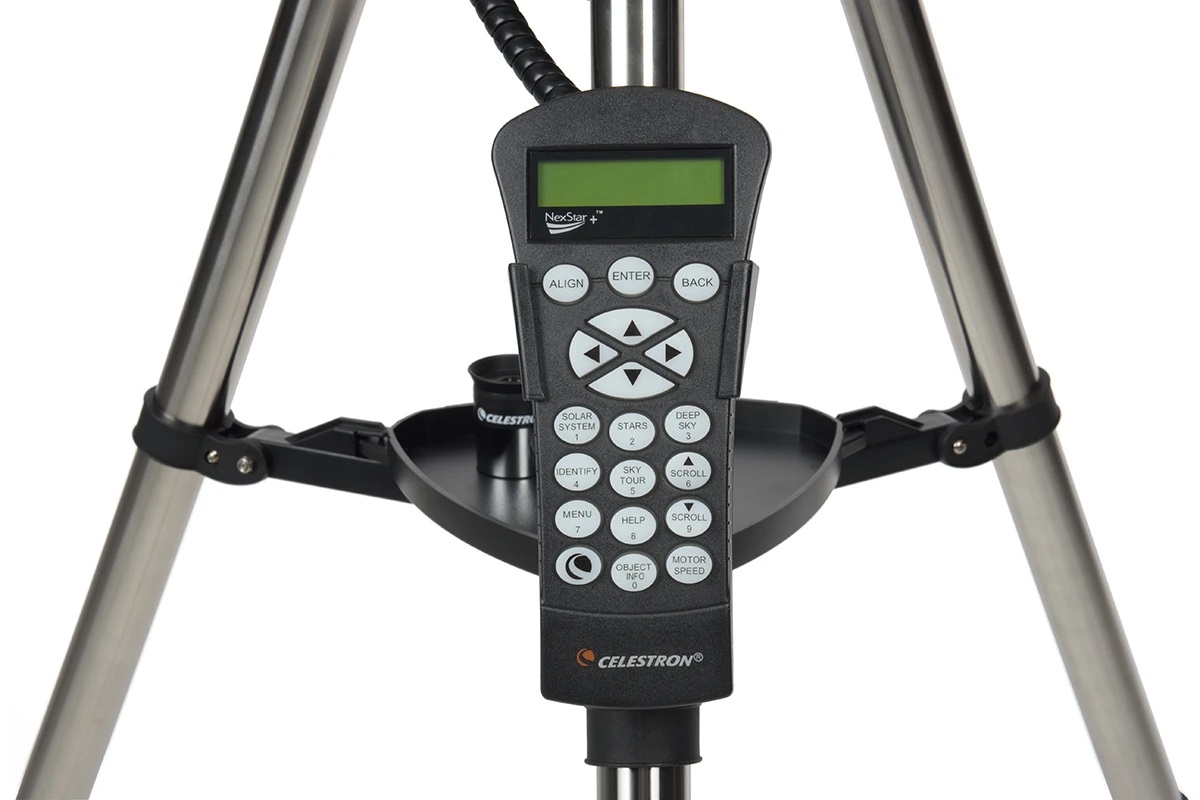

Computerized Hand Control: |
Yes |
NexStar Database: |
Over 40,000 including 220 of the best deep sky and solar system objects |
Software: |
Celestron’s Starry Night Special Edition Software | SkyPortal App |
Total Kit Weight: |
16 lbs (7.3 kg) |
Included Items: |
Optical Tube | Single Fork Arm Mount & Tripod | Accessory Tray| NexStar Hand Control | 25mm & 9mm eyepiece | StarPointer™ red dot finderscope | Manual |
Solar Warning |
|
Never look directly at the Sun with the naked eye or with an optic (unless you have the proper solar filter). Permanent and irreversible eye damage may result. |
|
Never use your optic to project an image of the Sun onto any surface. Internal heat build-up can damage the optic and any accessories attached to it. |
|
Never leave your optic unsupervised. Make sure an adult who is familiar with the correct operating procedures is with your optic at all times, especially when children are present. |
|
